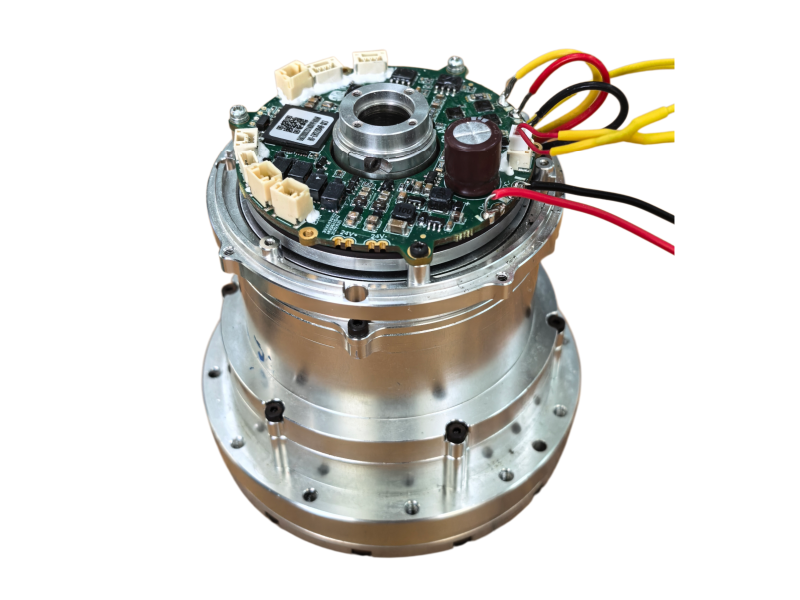

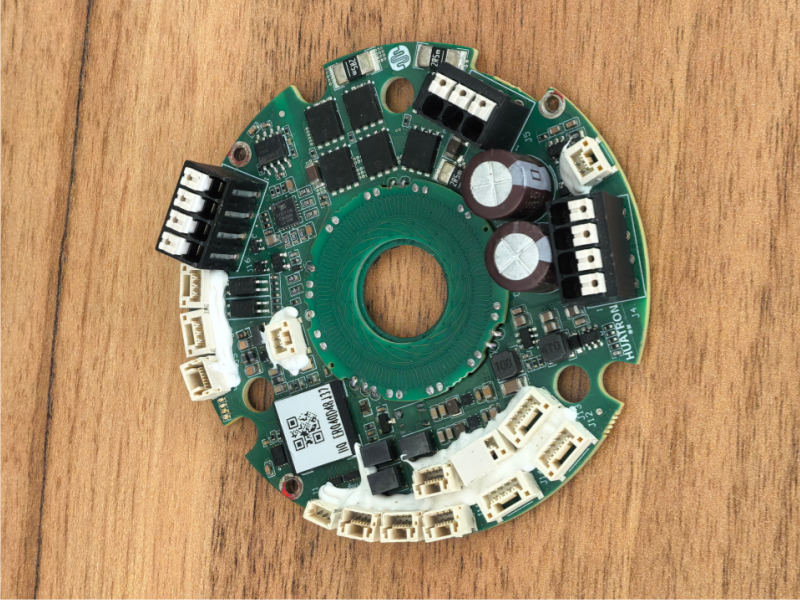

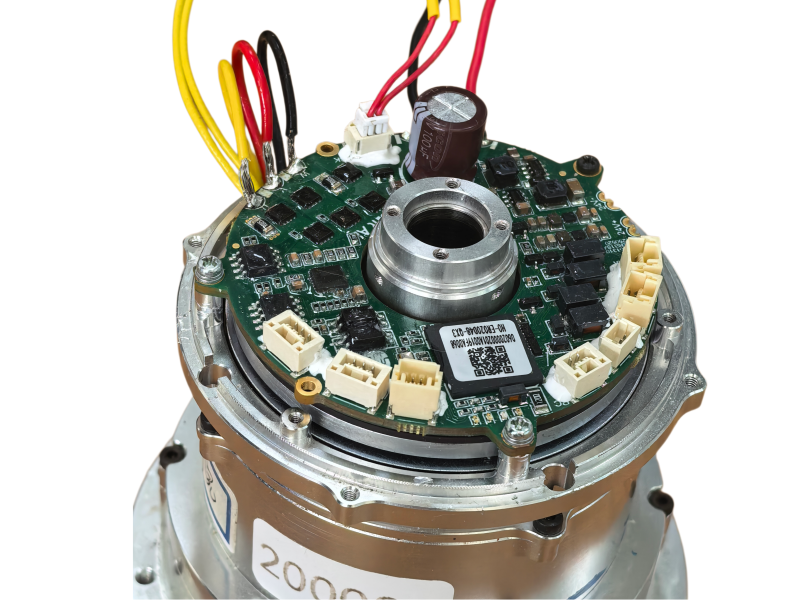

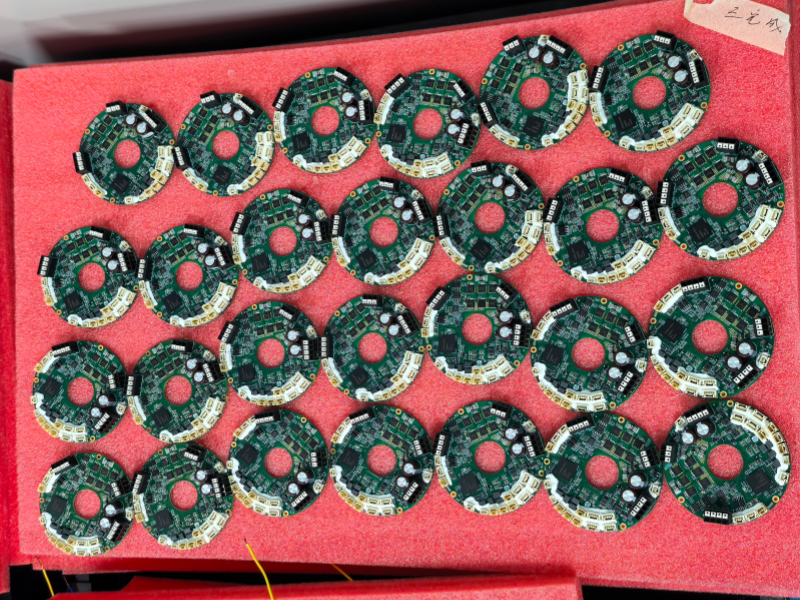

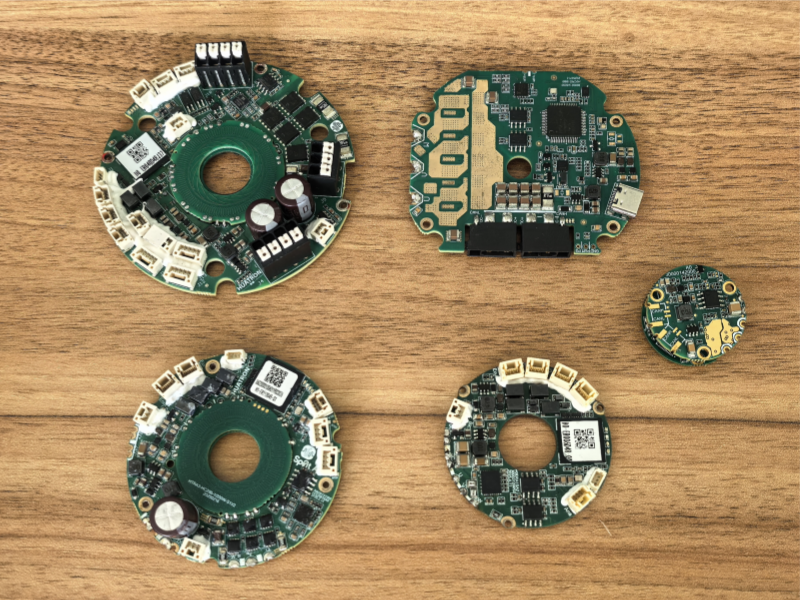

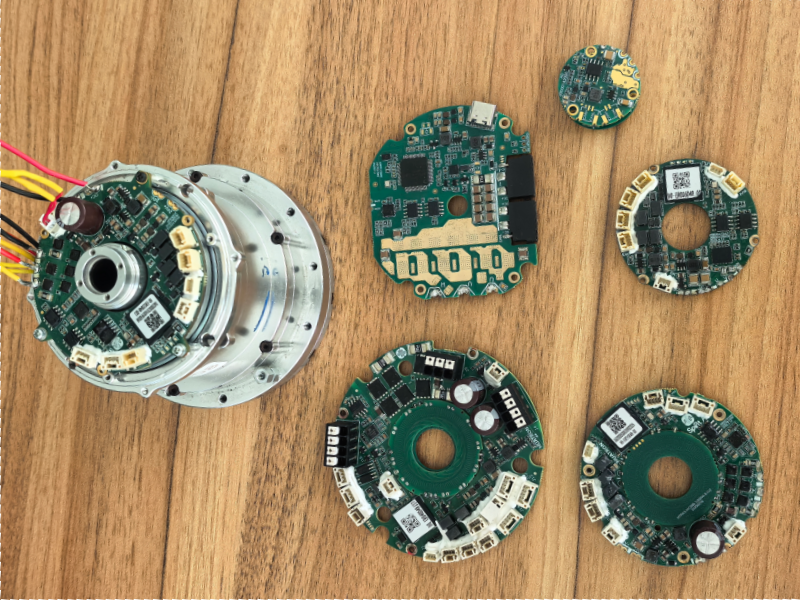

The next-gen H0 servo drive merges dual time-grid encoders and control electronics into one ultra-slim 17 mm body. Unlike traditional multi-layer pin-connected boards, its single-board design cuts connection points and boosts reliability while shrinking joint axial space by 35% and lifting power density by 40%.

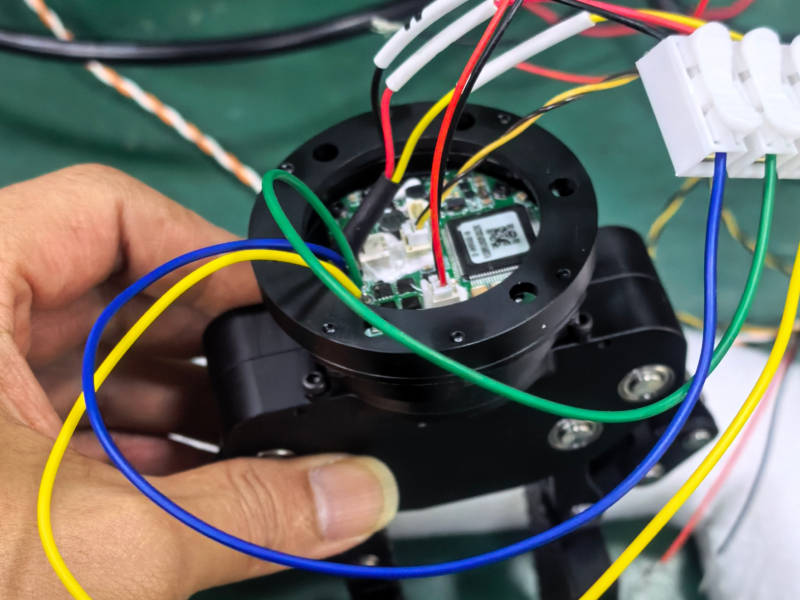

This compact form factor fits extreme space limits inside humanoid robot joints, giving designers breakthrough freedom to build lighter, more agile limbs without sacrificing drive performance or adding unnecessary weight.

With 200% instantaneous overload and millisecond-level dynamic response, the drive delivers explosive torque for high-intensity motions like jumping and running. Built-in 16-bit high-precision torque feedback channels sample beyond 16 kHz, streaming real-time joint load data to the controller via PDO to dynamically adjust motor output on the fly.

Combined with zero-gravity floating algorithms and hybrid force-position control, it actively cancels gravity so the robot can move freely, manipulate objects, and maintain dynamic balance in 3D space.

The adjustable-voltage brake releases at 24 V and lets you tune holding voltage to cut heat and save energy, extending brake life while keeping the robot safe. STO safety features hardware dual-channel redundancy plus software verification, stopping the motor instantly in emergencies to protect both personnel and machine.

Together, these smart safeguards ensure reliable, long-lasting operation in demanding humanoid applications where every gram of weight and every millisecond of response time truly counts for safe human interaction.
